Film Base Tape
Strong Adhesion PET Base Double Sided Tape 400P / 21MGCS Series
High Adhesion / Good Processability
Product Name |
Thickness |
Structure |
Adhesive Strength |
Application |
Notes |
Technical Data |
400P10 |
0.01 |
Acrylic Adhesive PET Base Material Acrylic Adhesive |
6.0 |
Fixing housing for household appliances and fixing items related to smart phones and tablets |
BTO |
 |
400P30 |
0.03 |
Acrylic Adhesive PET Base Material Acrylic Adhesive |
10.0 |
Fixing housing for household appliances and fixing items related to smart phones and tablets |
BTO BK is black |
|
400P50 |
0.05 |
Acrylic Adhesive PET Base Material Acrylic Adhesive |
15.0 |
Fixing housing for household appliances and fixing items related to smart phones and tablets |
BTO BK is black |
|
400P80 |
0.08 |
Acrylic Adhesive PET Base Material Acrylic Adhesive |
20.0 |
Fixing housing for household appliances and fixing items related to smart phones and tablets |
BTO BK is black |
|
400P100 |
0.1 |
Acrylic Adhesive PET Base Material Acrylic Adhesive |
20.5 |
Fixing housing for household appliances and fixing items related to smart phones and tablets |
BTO BK is black |
|
21MGCS100 |
1.0 |
Acrylic Adhesive PET Base Material Acrylic Adhesive |
31.0 |
Fixing housing for household appliances and fixing items related to smart phones and tablets |
BTO BK is black |
|
21MGCS200 |
2.0 |
Acrylic Adhesive PET Base Material Acrylic Adhesive |
40.0 |
Fixing housing for household appliances and fixing items related to smart phones and tablets |
BTO BK is black |
|
Waterproof Strong Adhesion PET Base Double Sided Tape 400Z Series
High Adhesion / Waterproof / Good Die Cut Property
Feature
This product is a double-sided tape which has both PET base material and dimensional stability and strong adhesion. It is excellent in die cut property and paste cutting property and good curvature followability.
Since the foam substrate is not used, there is no concern of flooding due to bubbles and it is excellent in waterproofness.
This double sided tape is not limited to metals but has high adhesion to glass and resins.
Since the foam substrate is not used, there is no concern of flooding due to bubbles and it is excellent in waterproofness.
This double sided tape is not limited to metals but has high adhesion to glass and resins.
Product Name |
Thickness |
Structure |
Adhesive Strength |
Application |
Notes |
Technical Data |
400Z150B/W |
0.15 |
Acrylic adhesive Polymer layer PET base material Acrylic adhesive |
18.5 |
Fixing and waterproofing of smartphone and tablet etc. |
BTO B is black W is white |
|
400Z200B/W |
0.2 |
Acrylic adhesive Polymer layer PET base material Acrylic adhesive |
22.5 |
Fixing and waterproofing of smartphone and tablet etc. |
BTO B is black W is white |
|
400Z250B/W |
0.25 |
Acrylic adhesive Polymer layer PET base material Acrylic adhesive |
25.0 |
Fixing and waterproofing of smartphone and tablet etc. |
BTO B is black W is white |
|
400Z300B/W |
0.3 |
Acrylic adhesive Polymer layer PET base material Acrylic adhesive |
28.0 |
Fixing and waterproofing of smartphone and tablet etc. |
BTO B is black W is white |
|
400Z400B |
0.4 |
Acrylic adhesive Ultra polymer layer Polymer layer Acrylic adhesive |
Hard side : 16 Soft side : 30 |
Fixing and waterproofing of smartphone and tablet etc. |
BTO B is black |
|

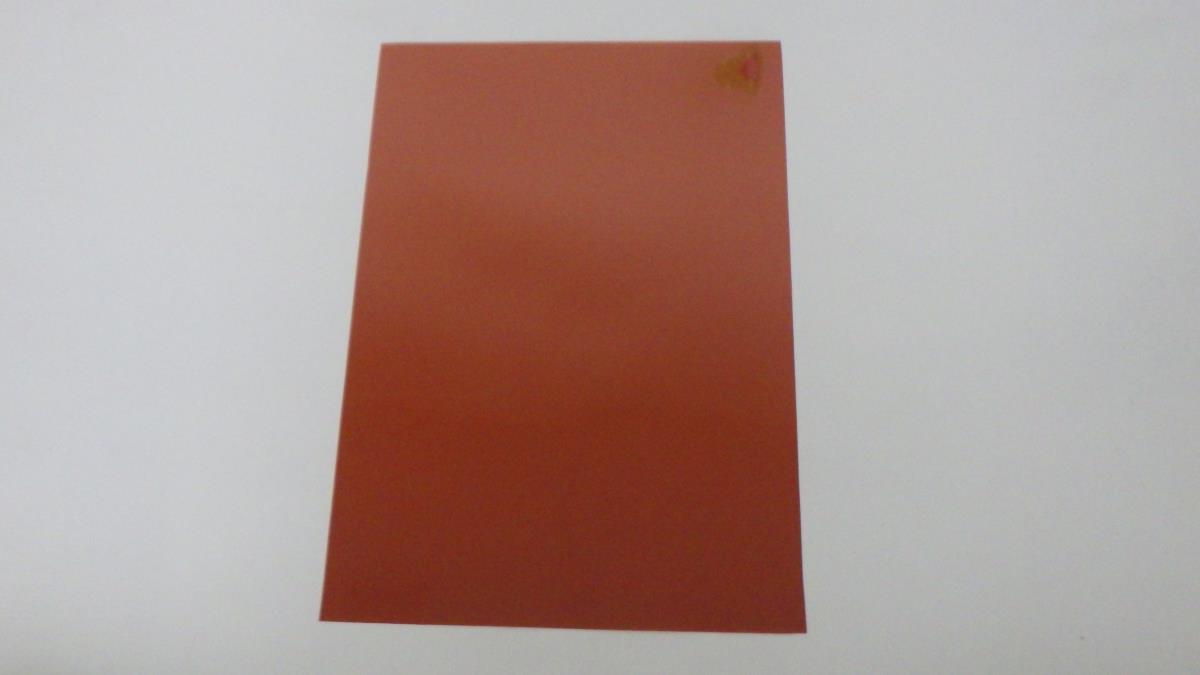

Heat Resistant Polyimide Base Double Sided Tape 272 / 278
High Adhesion / Heat Resistance / Reliability
Product Name |
Thickness |
Structure |
Adhesive Strength |
Application |
Notes |
Technical Data |
272 |
0.15 |
Silicone Adhesive Polyimide Film Silicone Adhesive |
7.0 |
Fixing parts around automobile engine and aerospace equipment |
BTO |
|
278 |
0.2 |
Acrylic Adhesive Polyimide Film Acrylic Adhesive |
5.0 |
Fixing parts around automobile engine and aerospace equipment |
BTO |
|
