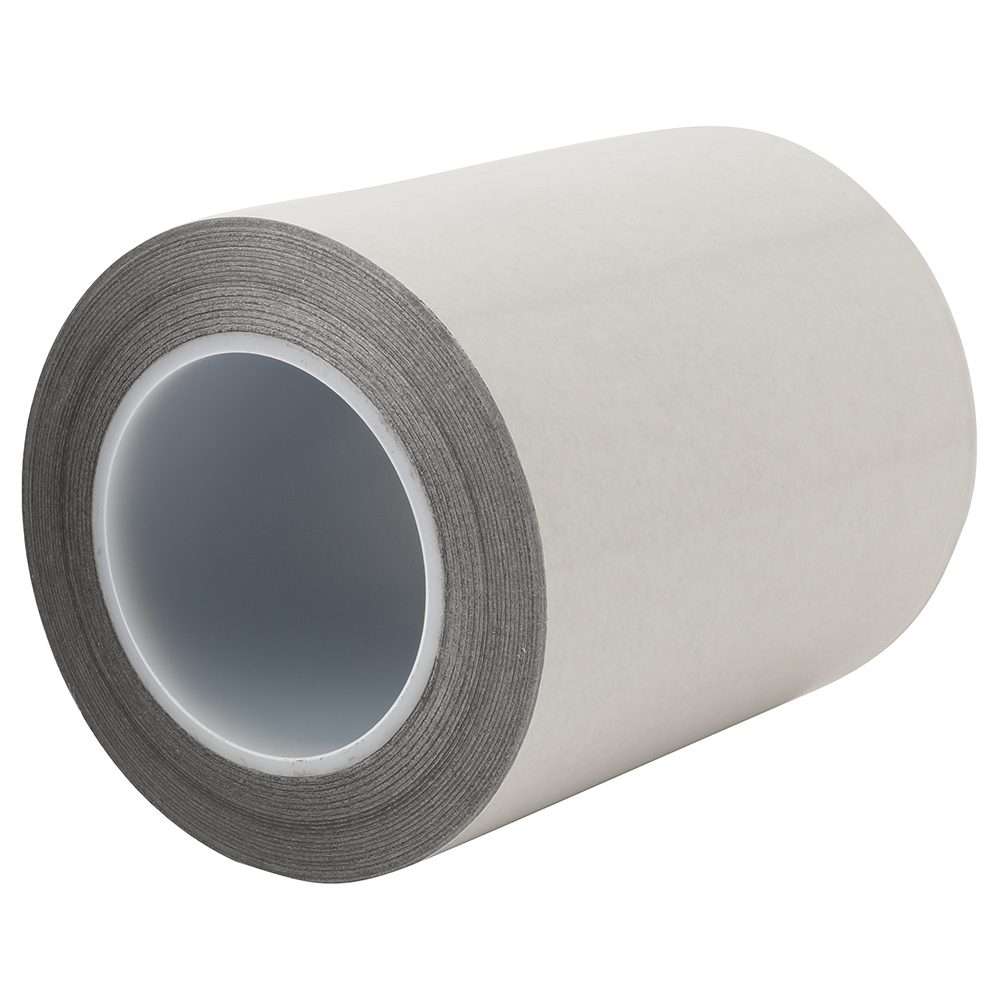

Conductive Tape
Conductivity / Radio Wave Shield
Feature
It is a conductive tape using metal foil base material and special conductive adhesive. This tape uses an adhesive that is superior to the initial tack, and since it uses a flexible conductive base material for the base material, it also follows the curved surface well. Moreover, it is excellent in conductivity and thermal conductivity because it uses a highly conductive substrate such as metal foil.
*Static electricity removal and grounding
*Measures against electromagnetic wave shielding
*Static electricity removal and grounding
*Measures against electromagnetic wave shielding
Product Name |
Thickness |
Base Material |
Adhesive Strength |
Feature |
Notes |
Technical Data |
SWEC60C |
0.06 |
Conductive Acrylic Adhesive Aluminum Foil Base Material Conductive Acrylic Adhesive |
9.0 |
Aluminum Foil Base Conductive Double Sided Adhesive Tape |
BTO |
 |
SSEC60C |
0.04 |
Aluminum Foil Base Material Conductive Acrylic Adhesive |
8.0 |
Aluminum Foil Base Conductive Single Sided Adhesive Tape |
BTO |
|
SWED98 |
0.098 |
Conductive Acrylic Adhesive Copper Foil Base Material Conductive Acrylic Adhesive |
12.0 |
Copper Foil Base Conductive Double Sided Adhesive Tape |
BTO |
|
150CU35 |
0.07 |
Copper Foil Base Material Conductive Acrylic Adhesive |
10.6 |
Copper Foil Base Conductive Single Sided Adhesive Tape |
BTO |
|
SWEE92 |
0.092 |
Conductive Adhesive Special Foam Base Material Conductive Adhesive |
8.0 |
Conductive Gasket Tape |
BTO |
|
101C |
0.11 |
Conductive Nonwoven Fabric Conductive Adhesive |
10.9 |
Conductive Nonwoven Fabric Adhesive Tape |
BTO |
|
