Heat Storage Tape

Heat Storage Tape

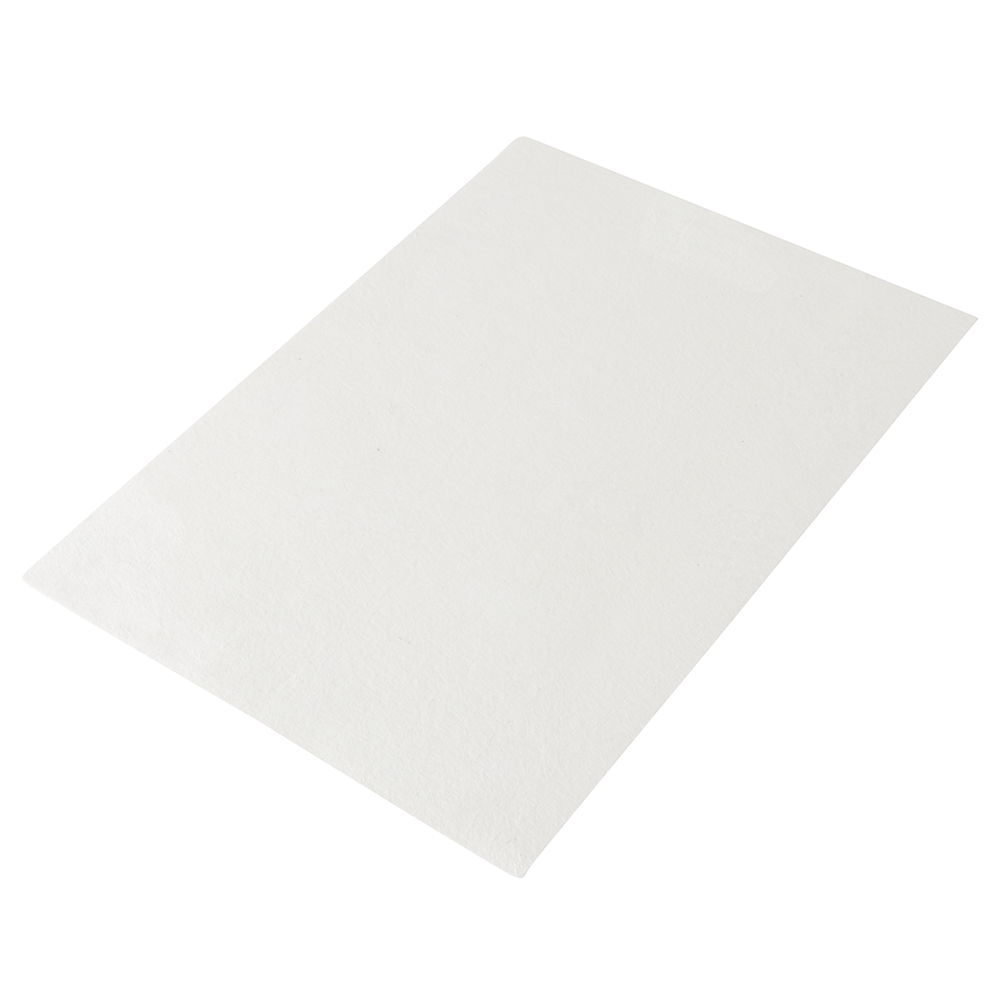

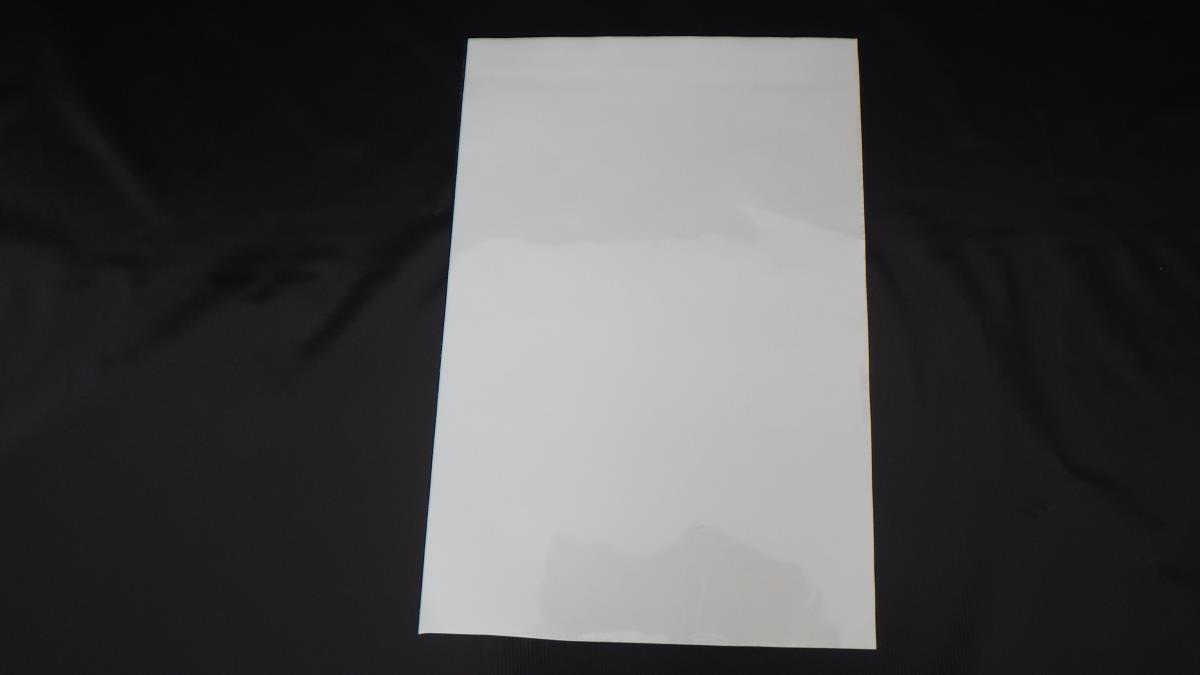

Heat Storage / Soaking Gel FREY Series

Heat Absorption / Heat Equalization / Heat Cushion

画像
Feature
It is a heat storage adhesive gel sheet based on acrylic resin.

 It is a heat storage gel sheet which can maintain temperature for a certain time at an arbitrary temperature.It is suitable for thermal measures and fixing of electronic equipment.
Application
*Countermeasures for equalization of IC chip
*Prevention of freezing of roads and bridges
*Mirror fogging prevention
*Heat storage material for floor heating
*Applications for outerwear, underwear, cold weather, gloves etc
*Applications for Quilts, pillows, bets etc

Product Name

Thickness
[mm]

Structure

Amount of
Heat Storage
J/g

Melting Point

Notes

Technical Data
FREY10
0.1
Separator
Heat Storage Gel
Separator
17.0
40℃
BTO
FREY50
0.5
Separator
Heat Storage Gel
Separator
17.0
40℃
BTO
FREY-K10
0.1
Separator
Heat Storage Gel
Separator
33.0
60℃
BTO
FREY-K50
0.5
Separator
Heat Storage Gel
Separator
33.0
60℃
BTO
FREY-R10
0.1
Separator
Heat Storage Gel
Separator
18.0
70℃
BTO
FREY-R50
0.5
Separator
Heat Storage Gel
Separator
18.0
70℃
BTO
FREY-KH10
0.1
Separator
Heat Storage Gel
Separator
47.0
70℃
BTO
FREY-KH50
0.5
Separator
Heat Storage Gel
Separator
47.0
70℃
BTO

Heat Storage Gel ＋ Aluminum Foil Sheet

Product Name

Structure


Heat Storage Gel
Thickness（mm）

Aluminum Foil Sheet
Thickness（mm）

Melting Point

Thermal conductivity
(W/m・K)

Technical Data
FREYAL3.5
FREY
Aluminum Foil
0.035
0.025
40℃
142
FREYAL7.5
FREY
Aluminum Foil
0.075
0.025
40℃
67
FREYAL-K3.5
FREY-K
Aluminum Foil
0.035
0.025
60℃
164
FREYAL-K7.5
FREY-K
Aluminum Foil
0.075
0.025
60℃
76

Heat Storage Gel ＋ Graphite Sheet

Product Name

Structure

Heat Storage Gel
Thickness（mm）

Graphite Sheet
Thickness（mm）

Heat Capacity
(J/g)

Thermal conductivity
(W/m・K)

Technical Data
hFREYG-10-〇
FREY
Graphite Sheet
0.035-100
0.025-100
17
800
hFREYG-50-〇
FREY
Graphite Sheet
0.075-100
0.025-100
17
800
hFREYG-K10-〇
FREY-K
Graphite Sheet
0.035-100
0.025-100
33
800
hFREYG-K50-〇
FREY-K
Graphite Sheet
0.075-100
0.025-100
33
800
pFREYG-10-〇
FREY
Graphite Sheet
1.6-
1.5-
17
10-800
pFREYG-50-〇
FREY
Graphite Sheet
2.0-
1.5-
17
10-800
pFREYG-K10-〇
FREY-K
Graphite Sheet
1.6-
1.5-
33
10-800
pFREYG-K50-〇
FREY-K
Graphite Sheet
2.0-
1.5-
33
10-800

Heat Storage Gel ＋ Urethane Sheet

Product Name

Structure


Thickness（mm）

Adhesive Strength
[N/25mm]
SUS

Melting Point

Thermal conductivity
(W/m・K)

Technical Data
FREANE
Urethane Sheet
Heat Storage Gel
0.5
10.0
32℃
0.34
Heat Storage / Soaking Gel Sheet FREY Series Download

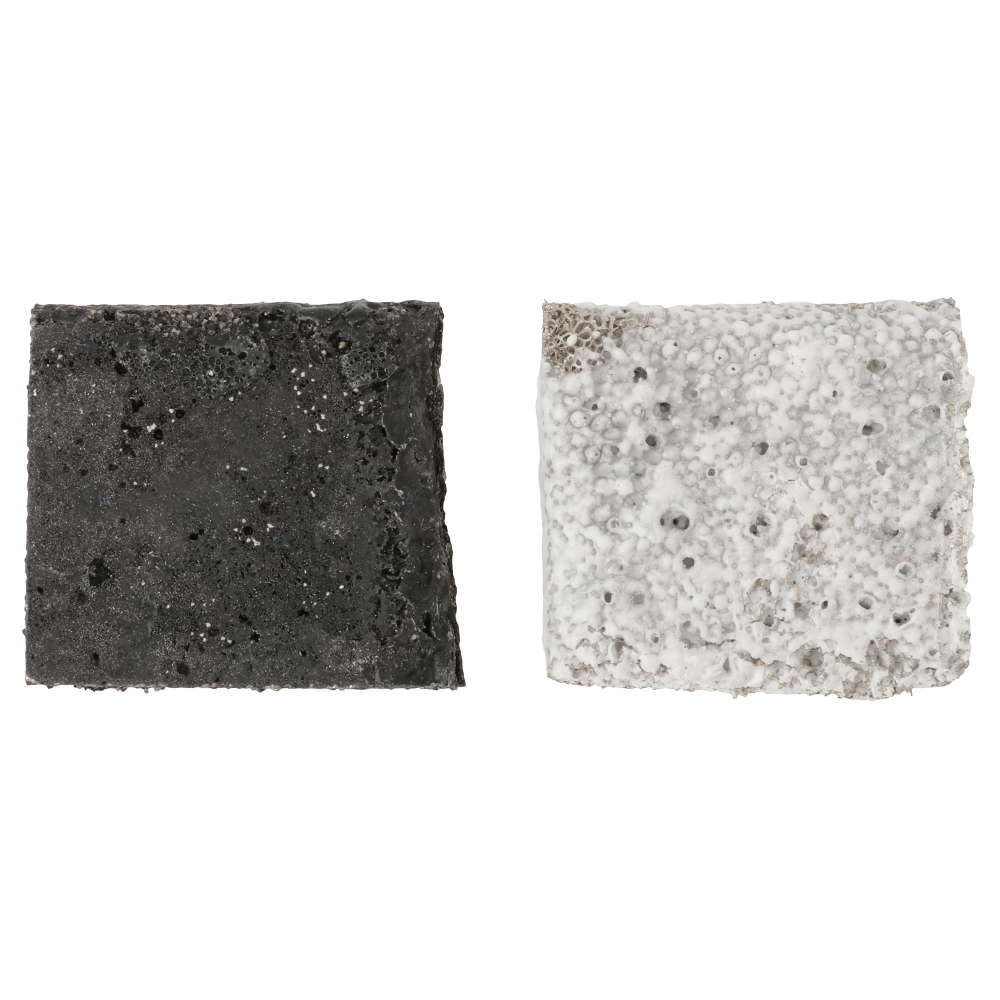

Heat Storage / Soaking Gel FOX Series

Heat Absorption / Heat Equalization / Heat Cushion

画像
Feature
Sheet of porous metal 【 aluminum / nickel 】 filled with heat storage agent.
Application
A heat equalizing sheet that absorbs heat by a heat storage material and dissipates heat from the metal foam.

Product Name

Thickness
[mm]

Component

Melting Point

Thermal
Conductivity
（W/m・Ｋ)

Storage
Energy
（J/g)

Technical Data
FOX300
3.0
Metal Foam+
Heat Storage Agent
40℃
50
10
FOX300K
3.0
Metal Foam +
Heat Storage Agent
70℃
50
10

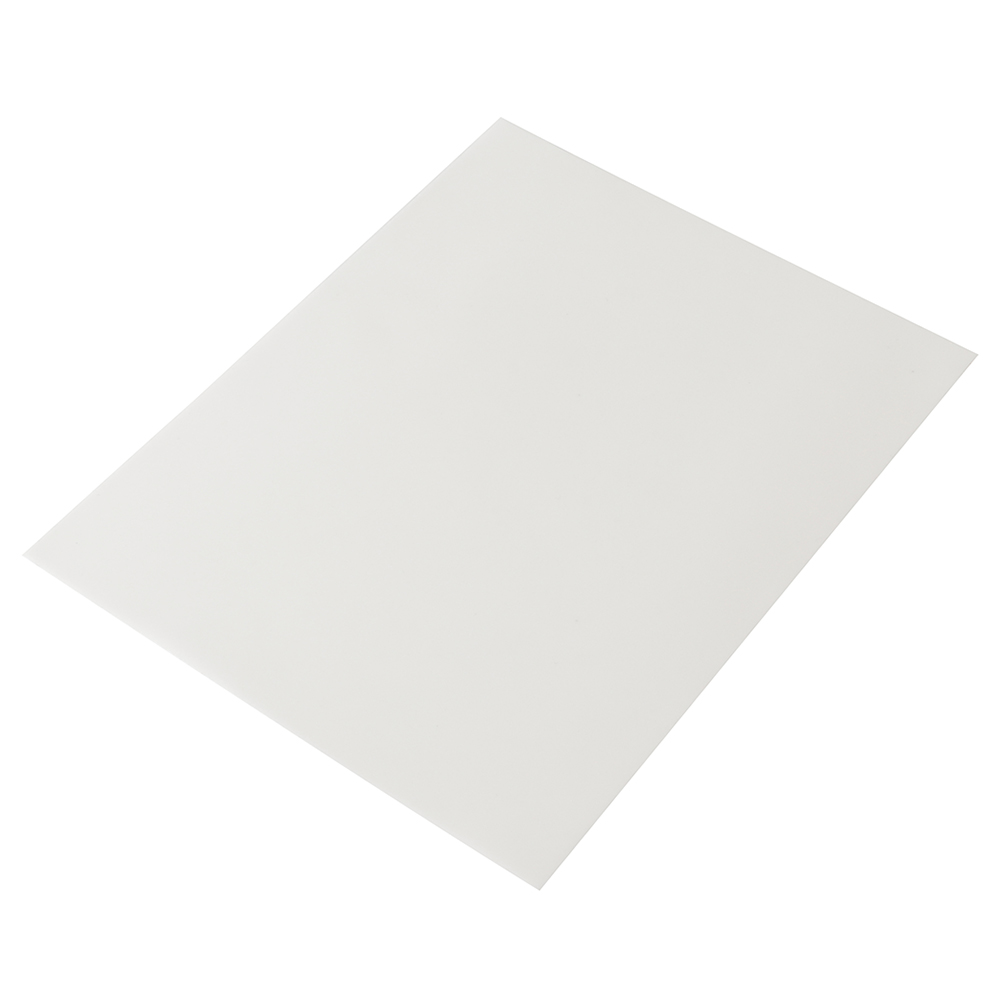

Heat Storage Non-Woven Fabric  / 801  Series

Heat Absorption / Heat Insulation

画像
Feature
A heat storage sheet made by impregnating a non-woven fabric with a heat storage agent.

・ Stores heat
・ It Has heat insulating properties due to the non-woven fabric impregnated with heat storage agent
Application
Heat insulation materials around housing equipment

Product Name

Thickness
[mm]

Component

Mechanical Strength
（N/10mm）

Heat Capacity
（1㎤）
J/K

Transition
Temperature

Technical Data
801-12
1.2
Non-woven fabric sheet impregnated
with heat storage agent
65
2.4
32℃
801-20
2.0
Non-woven fabric sheet impregnated
with heat storage agent
120
2.4
32℃
801-R12
1.2
Non-woven fabric sheet impregnated
with heat storage agent
65
3.6
70℃
801-R20
2.0
Non-woven fabric sheet impregnated
with heat storage agent
120
3.6
70℃

Insulation Support Sheet  / VI－FREY

Heat Absorption / Heat Insulation

画像
Feature
It is a heat insulating sheet that is made by bonding a vacuum heat insulation panel and a heat storage sheet.you can expect the effect of insulating the outside air and keeping the internal temperature by storing heat.
Application
Heat insulation materials around housing equipment

Product Name

Thickness
[mm]

Structure

Thermal
Conductivity
（W/m・K）

Heat Capacity
（J/g）

Transition
Temperature

Technical Data
VI－FREY
6.0
Vacuum Insulation Sheet
Heat Storage Gel Sheet
0.002
15.0
32℃
