Thermal Conductive Tape

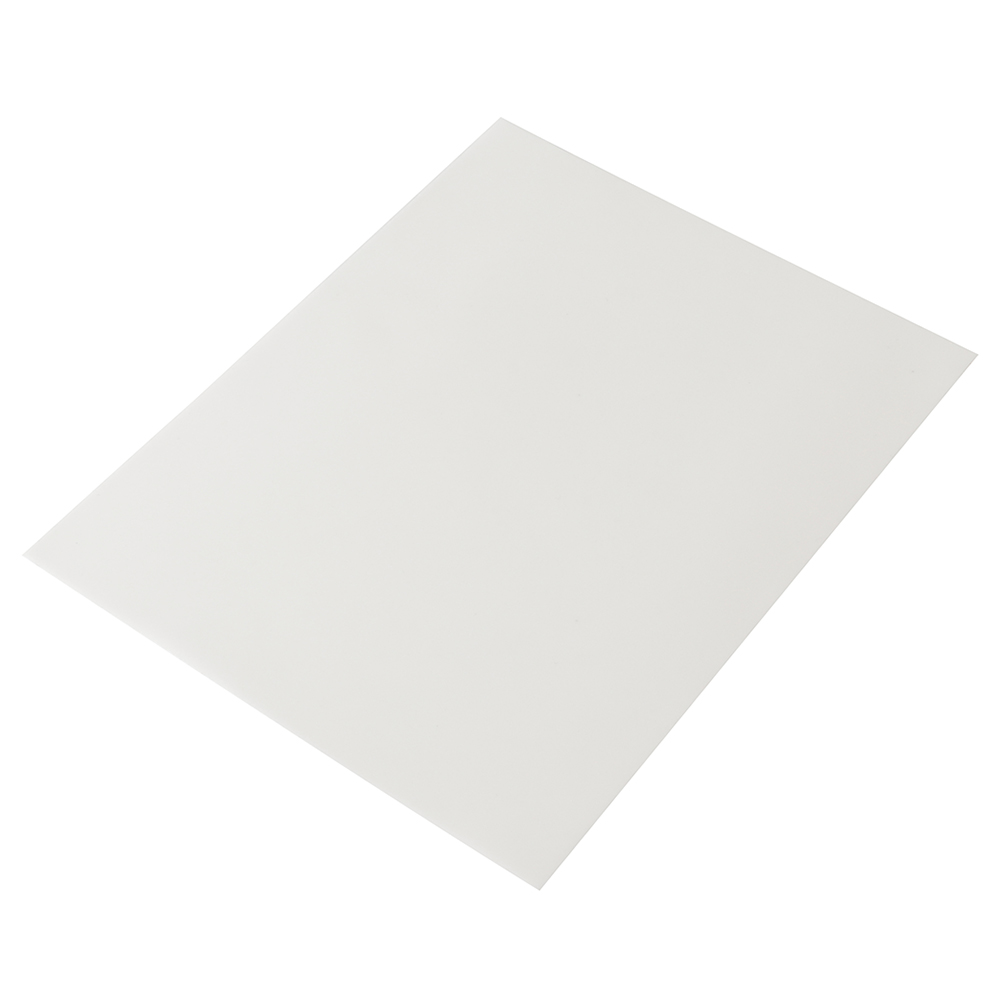

Thermal Conductive Gel Sheet Tathaga

High Thermal Conductivity / Insulation

Feature

This product is a heat-dissipating gel sheet filled with highly heat conductive filler in its own acrylic gel

*Because it is a non-silicone type, it does not cause insulation inhibition
*It has moderate hardness and tackiness, punching and pasting workability is good
*Excellent in flexibility and good adhesion even on rough surface
*Excellent adhesion at high temperature and low temperature
*Excellent heat dissipation and insulation
*Excellent environmental long-term durability (high temperature, high temperature and high humidity, heat shock)

Application

Joining of circuit board and heat sink (For LED lighting)
Joining of electronic components and heat sink (For CPU)
Joining of electronic components and circuit board



Product Name	Thickness [mm]	Structure	Adhesive Strength [N/25mm] SUS	Thermal Conductivity （W/m・K）	Notes	Technical Data
KBS30	0.3	Separator Thermal Conductive Gel Separator	5.0	1.3	BTO
HTAG30	0.3	Separator Thermal Conductive Gel Separator	4.0	3.0	BTO

Thermal Conductive Gel sheet 【Tathaga】 Series Download

PDF Download

The Thermal Conductive Gel Sheet 【Tathaga】 Series catalog is available for download

PDF Download

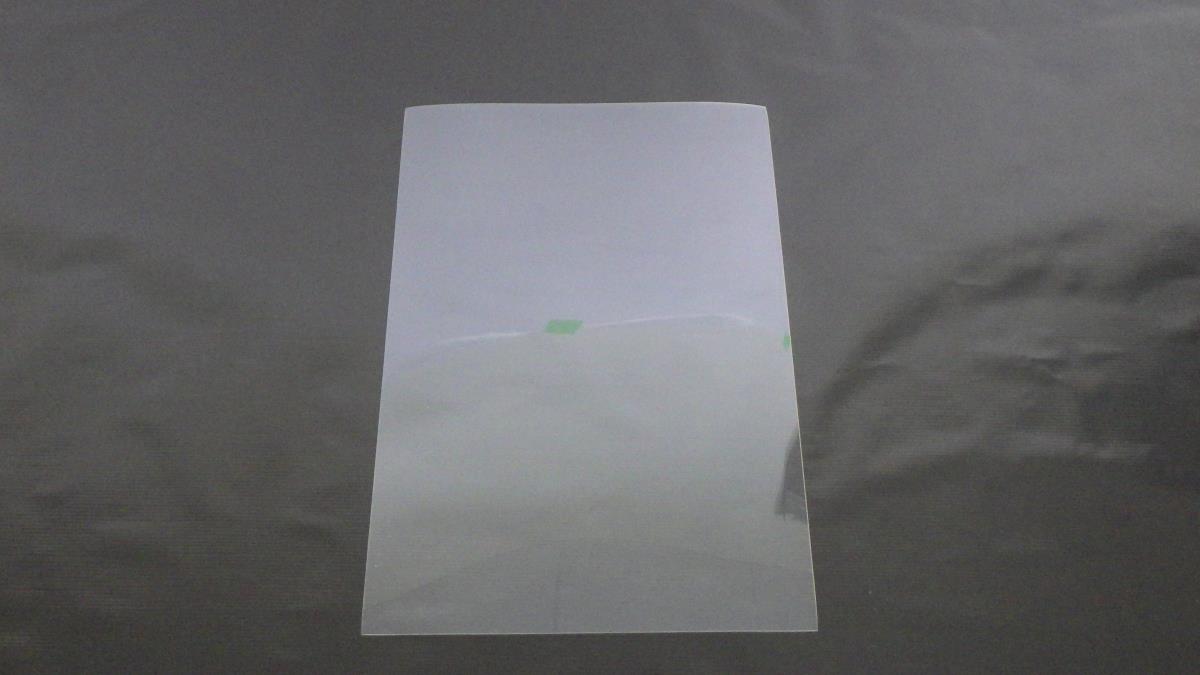

Transparent Thermal Conductive Gel Sheet HTA02TX

Transparency / High Thermal Conductivity / Insulation

Feature

An adhesive sheet that has both transparency and thermal conductivity.

Application

For heat measures and fixing of electronic parts



Product Name	Thickness [mm]	Structure	Tt （%）	Thermal Conductivity （W/m・K）	Notes	Technical Data
HTA02TX	0.2	Transparent Thermal Conductive Film Transparent Acrylic Adhesive Layer	90	6.7	BTO
