Insulation Sheet

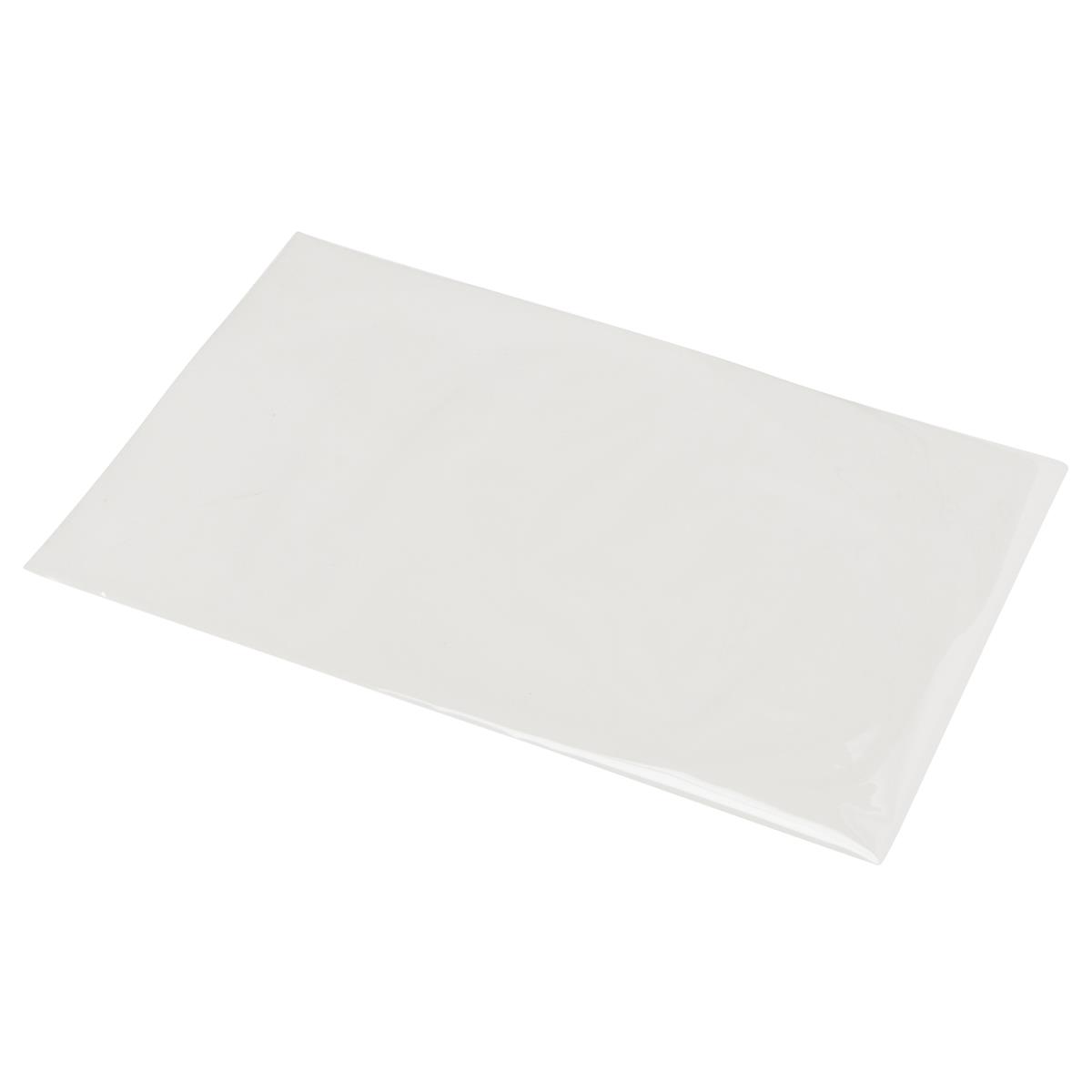

Ethylene Vinyl Acetate film (EVA) "EF-40"

Good insulation / Good sealing

Feature

Ethylene-vinyl acetate film 【EVA】 is a copolymer of ethylene 【E】 and vinyl acetate 【VA】. And it is an environmentally friendly material.For industrial and medical use such as fixing and protecting solar cells.

・It is a film that adheres glass and protective sheet.
・It has high growth rate and tensile strength, and has excellent flexibility.
・It has excellent waterproof, cold resistance, and impact resistance.



Product Name	Thickness [mm]	Structure	Adhesive Strength [N/25mm] SUS	Application	Notes	Technical Data
EF-40	0.04	EVA PET	≧10.0	For industrial and medical use such as fixing and protecting solar cells	BTO

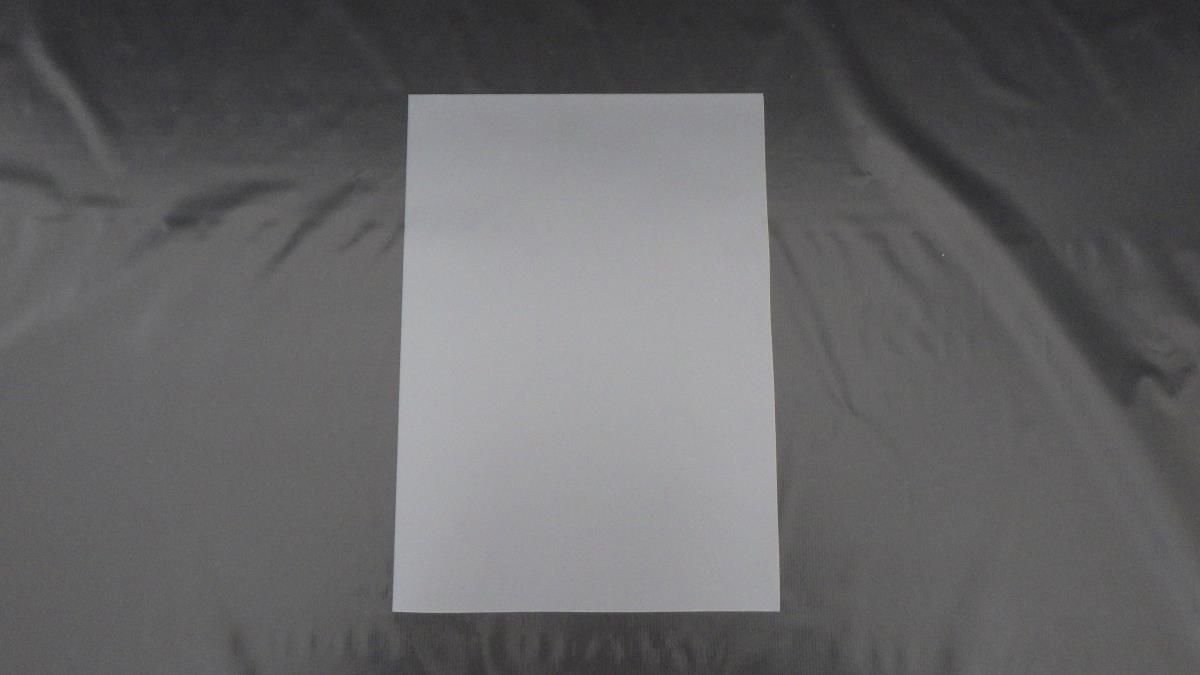

Acrylic Film "IKEPON150Z"

Good insulation / Reliability

Feature

Acrylic resin is the base and has heat resistance and insulation.It is used for insulation of electronic parts.



Product Name	Thickness [mm]	Structure	Breaking Strength [N/cm]	Application	Notes	Technical Data
IKEPON150Z	0.15	Acrylic Special Resin Separator	11.3	Insulation applications for electronic components, etc.	BTO

Insulation Sheet IKEPON Download

PDF Download

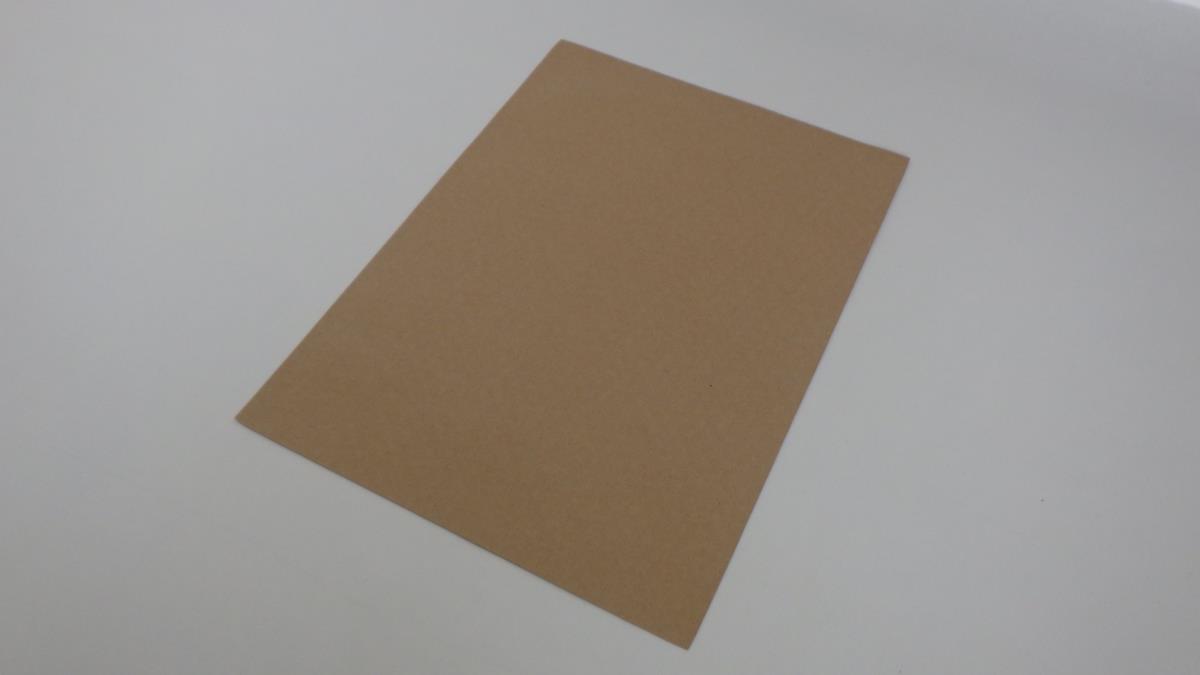

Liquid Crystal Polymer Film (LCP) "SARAS"

Heat resistance / High strength / Excellent electrical properties

Feature

Liquid crystal polymers are often used in electronic components due to their excellent heat resistance and electrical and mechanical properties. Typical applications are connectors, switches and coil bobbins. In addition, it is expanding to film applications by taking advantage of its gas barrier properties and electrical insulation.



Product Name	Color	Thickness （mm）	Melting point	Application	Notes	Technical Data
SAR13	Brown	0.013	280℃	Insulation applications for electronic components	BTO
SAR20	Brown	0.02	280℃	Insulation applications for electronic components	BTO
SAR35	Brown	0.035	280℃	Insulation applications for electronic components	BTO

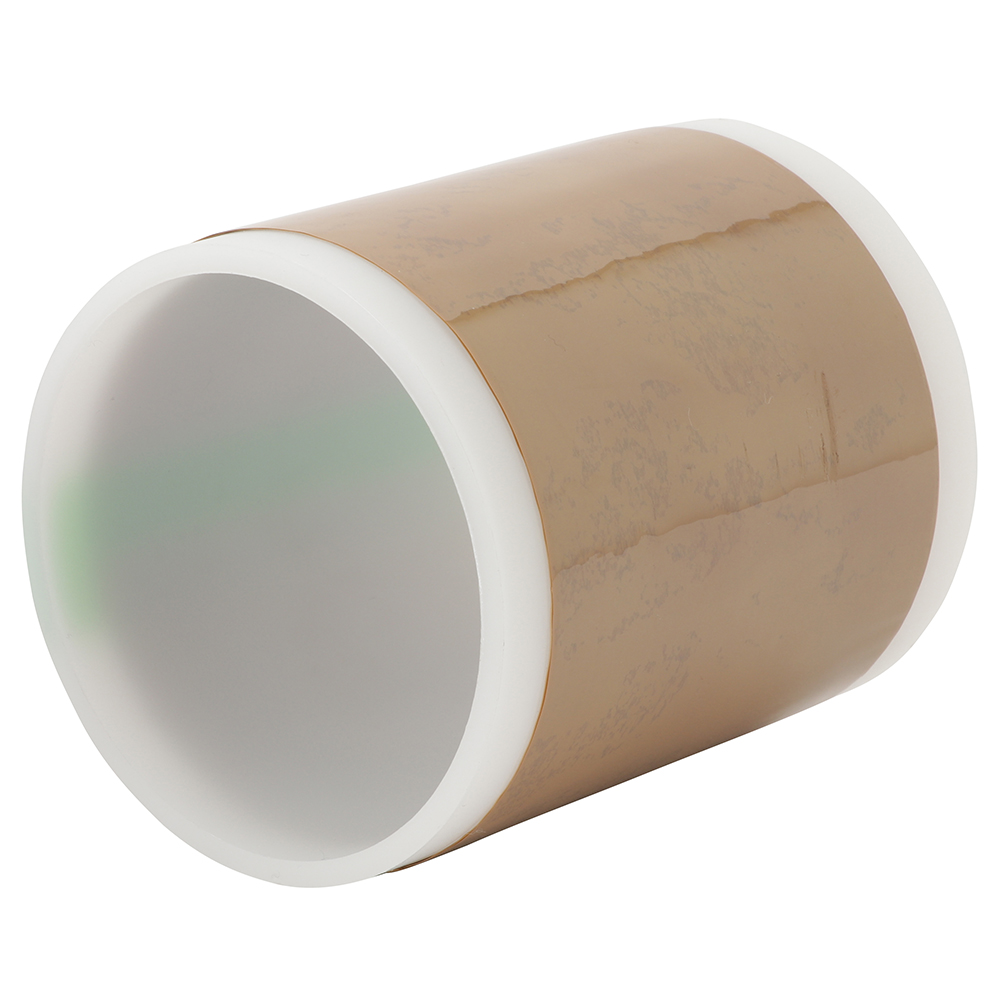

Polyanol Film "PALF"

Excellent transparency / Dimensional stability

Feature

Polyanol is an amorphous film composed of divalent phenol, phthalic acid, and carboxylic acid.This film has excellent transparency and dimensional stability.



Product Name	Color	Thickness （mm）	Heat-Resistant	Application	Notes	Technical Data
PALF50	Transparent	0.05	194～270℃	Diaphragm for audio equipment For IC chip mounting ACF antenna fixing	BTO
