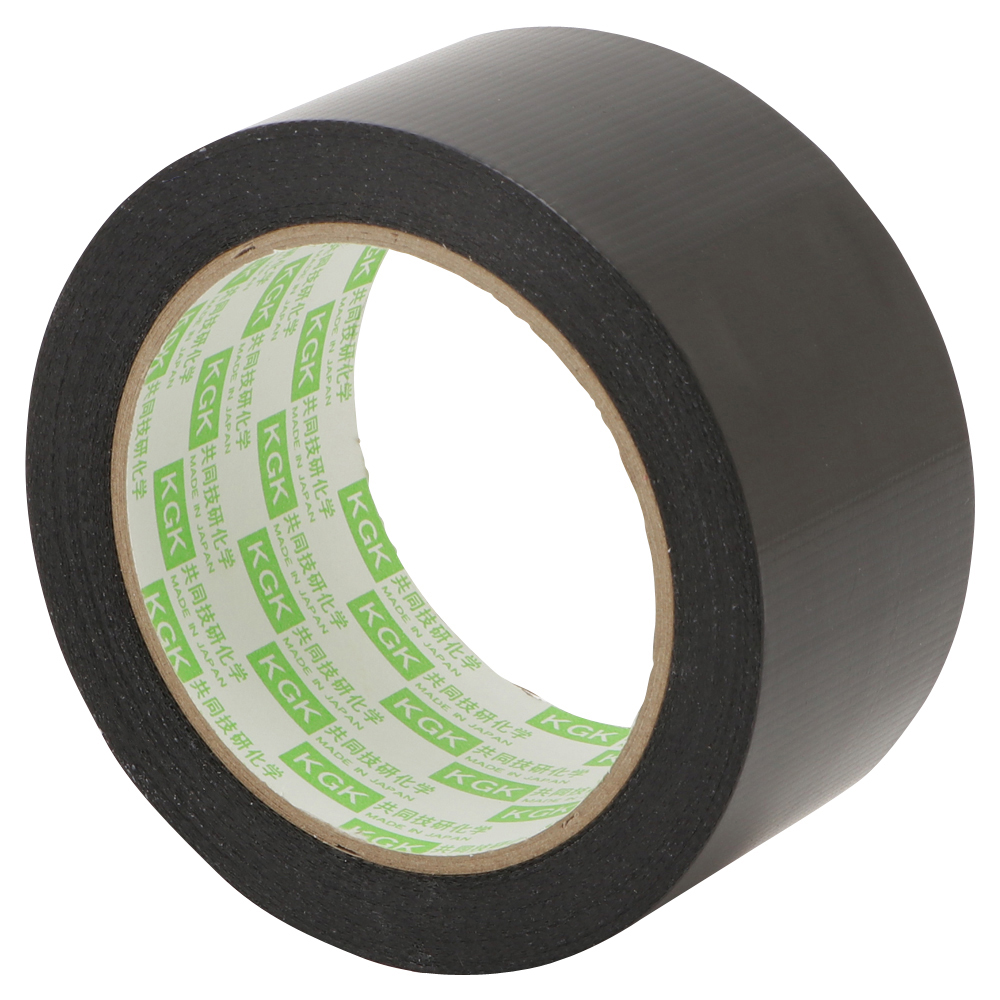

Waterproof Airtight Tape

Super Poly Cross VH Series

Hand-Cuteness / Strong Adhesion

Feature

・The base material used is excellent in strength
・Excellent workability due to good hand cut properties
・It has excellent adhesion to various adherends
・Strongly adhered to rough surface
・Excellent adhesive strength even at low temperature
・Approved as NYG Association recommended item (JTC quality standard compliant product)
・Non Toluene

Application

・Waterproof around sash, floor around, opening, foundation
・Waterproof tape for connecting moisture-permeable moisture-proof sheet and insulation material.
・Waterproof seal such as around piping, circumflexing, etc.
・Emergency repair of outdoor products.



Product Name	Thickness [mm]	Base Material	Adhesive Strength [N/25mm] SUS	Width × Length × Roll/Box) (mm) × (M) × (R)	Color	Technical Data
VH (Single Sided Tape)	0.2	PE Cloth	30.0	50mm×20M×36R 75mm×20M×24R 100mm×20M×18R	Black Natural
VHW (Double Sided Tape)	0.3	PE Cloth	30.0	50mm×20M×36R 75mm×20M×24R 100mm×20M×18R	Black

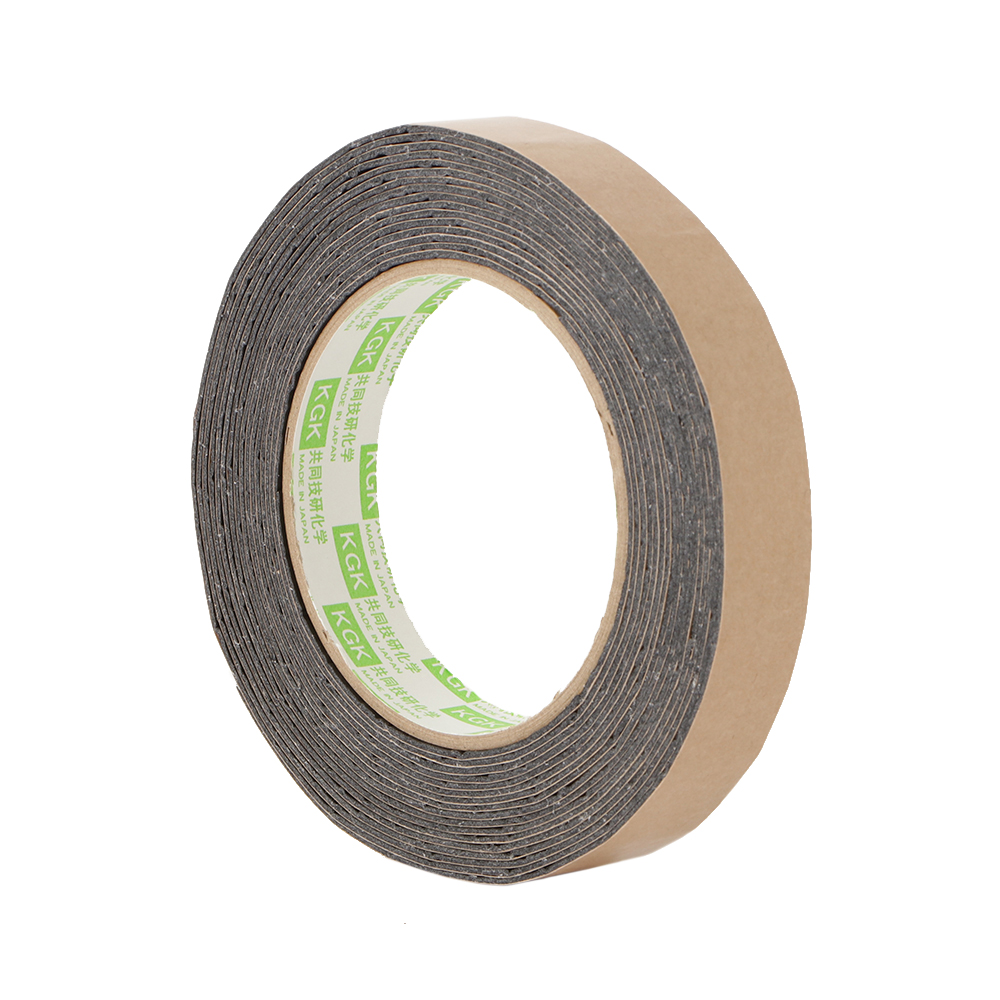

Waterproof Airtight Sealer 603B Series

Waterproof / Weatherproof

Feature

Butyl rubber has small water absorption and excellent water barrier. It is also excellent material as a sealer material because it has good weather resistance.

Sealer material 603 B is a product in which a surface layer of thin butyl rubber sheet and polyester fiber nonwoven fabric are impregnated with semi-crosslinked butyl rubber.

Air bubbles contained in the butyl rubber impregnated nonwoven fabric of the base material layer are confined. It has excellent characteristics as a sealing material because it has characteristics of both foamed butyl rubber and strong polyester nonwoven fabric.



Product Name	Thickness [mm]	Structure	Adhesive Strength [N/25mm] SUS	Application	Color	Technical Data
603B	1.15	Acrylic Adhesive Butyl-Impregnated Composite Substrate Acrylic Adhesive	13.0	It is a water stop tape used for sash It is a tape that water will not leak even if it passes through the screw Excellent weather resistance	Black
606G	1.15	Acrylic Adhesive Butyl-Impregnated Composite Substrate Acrylic Adhesive	13.0	It is a water stop tape used for sash It is a tape that water will not leak even if it passes through the screw Excellent weather resistance	Gray
609W	1.15	Acrylic Adhesive Butyl-Impregnated Composite Substrate Acrylic Adhesive	13.0	It is a water stop tape used for sash It is a tape that water will not leak even if it passes through the screw Excellent weather resistance	White

Waterproof Airtight Tape 【603B】 Catalog Download

PDF Download

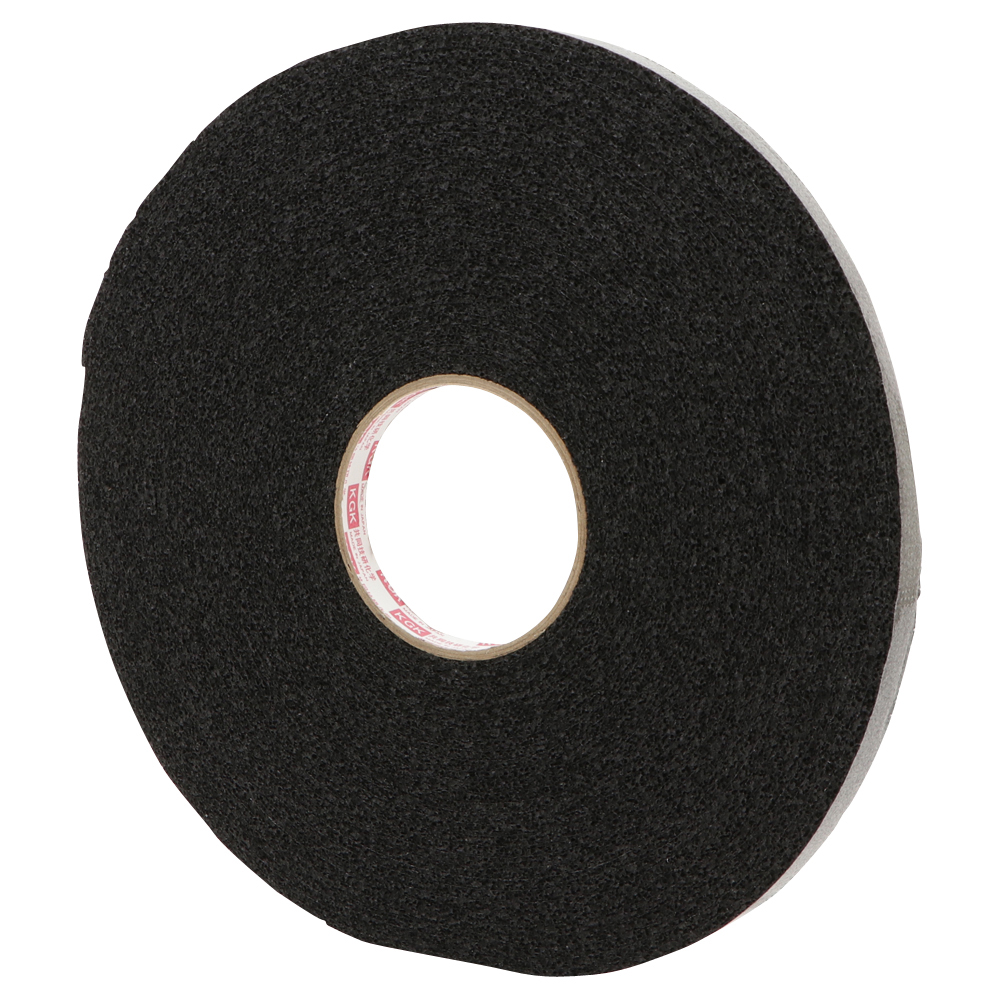

EPDM Special Foam Base Single Sided Tape Cell Seal P

Waterproof / Hand-Cuteness

Feature

EPDM special foam substrate single-sided tape
Excellent hand-cut property and excellent workability with special film structure (patent)

· Hermetic seal of housing equipment member
· Air-tight seal such as unit house, heat insulating panel, storage room



Product Name	Thickness [mm]	Structure	Adhesive Strength [N/25mm] SUS	Width × Length × Roll/Box) (mm) × (M) × (R)	Color	Technical Data
Cell Seal P	3.0 5.0 10.0	EPDM Foam PET	10.0	20mm×15M×50R 50mm×15M×20R 50mm×3.5M×20R	Black
