Waterproof sealer material

画像

Product Name

Structure

Thickness
(mm)

Adhesive
Strength
SUS
(N/25mm)

Features

Color

Data sheet

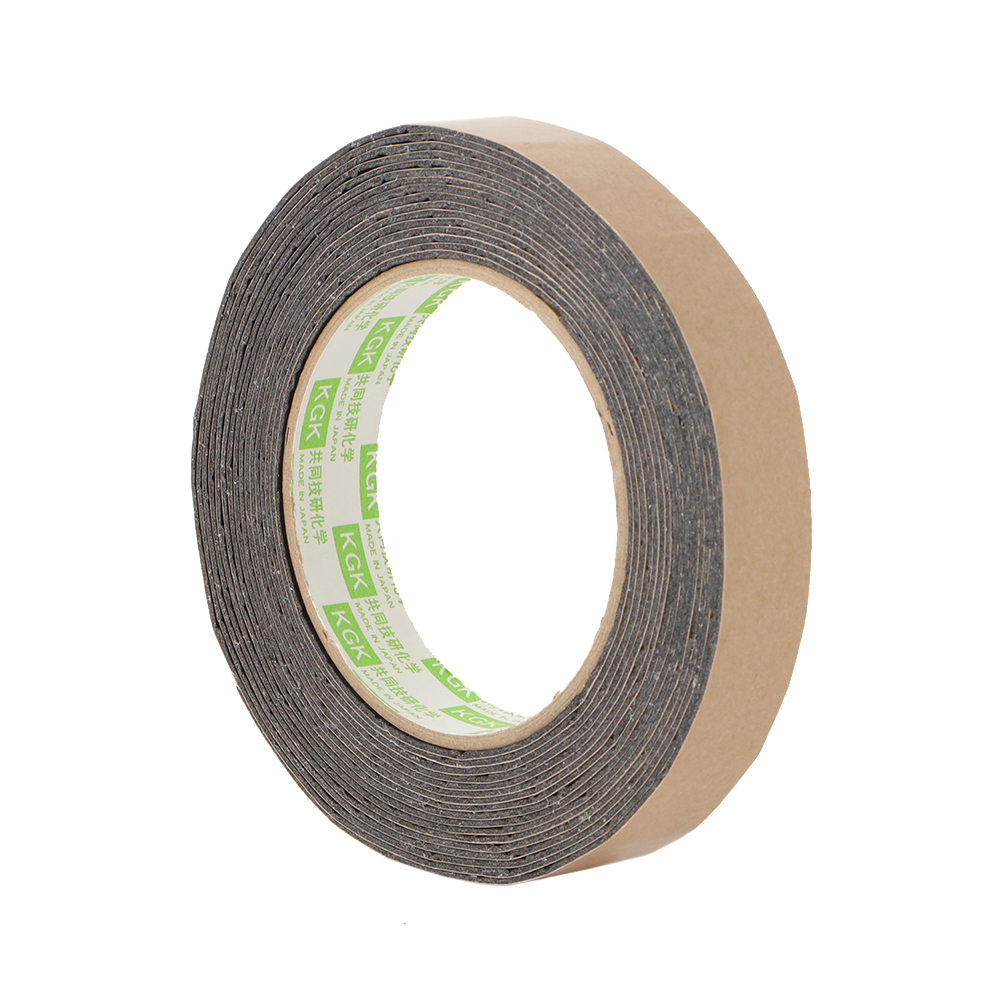

603B
Special acrylic adhesive layer
Butyl-impregnated composite substrate
Special acrylic adhesive layer
1.15
13.0
It is a water stop tape used for sash
It is a tape that water will not leak
even if it passes through the screw
Excellent weather resistance
Black

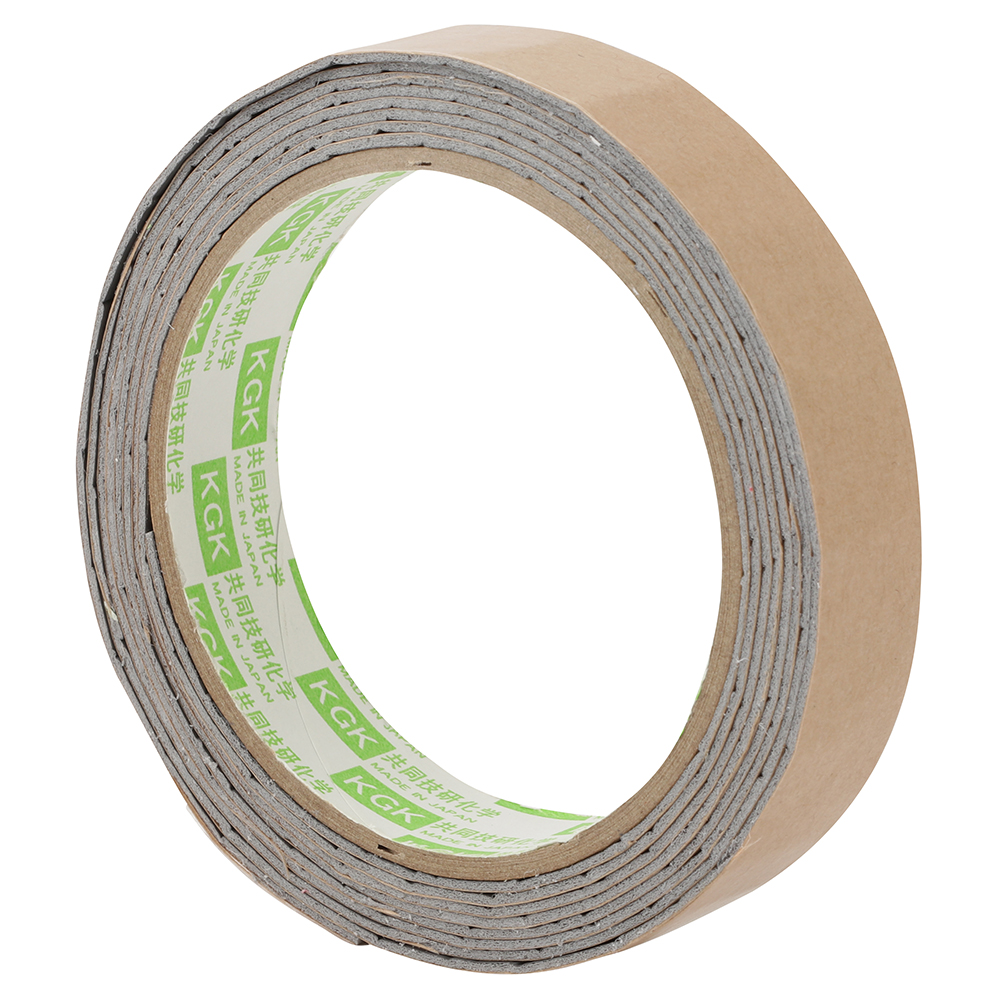

606G
Special acrylic adhesive layer
Butyl-impregnated composite substrate
Special acrylic adhesive layer

1.15
13.0
It is a water stop tape used for sash
It is a tape that water will not leak
even if it passes through the screw
Excellent weather resistance

Gray

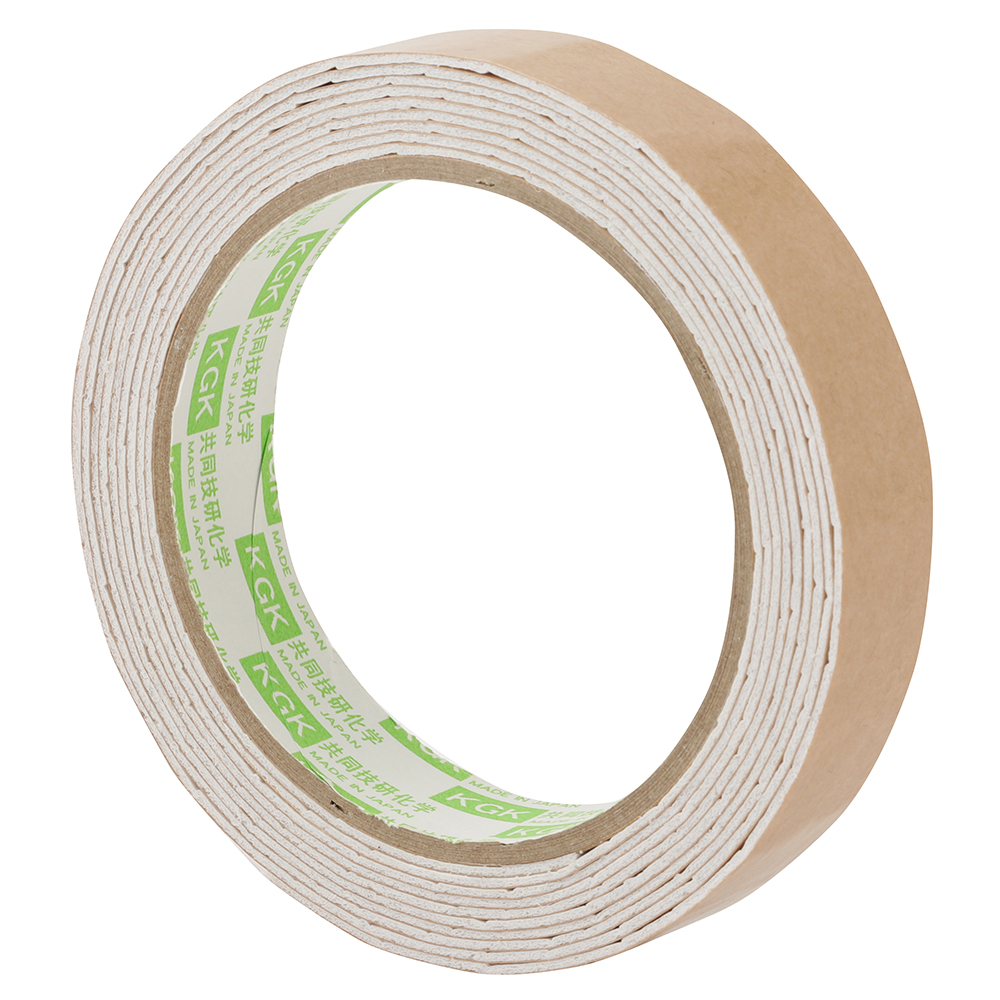

609W
Special acrylic adhesive layer
Butyl-impregnated composite substrate
Special acrylic adhesive layer

1.15
13.0
It is a water stop tape used for sash
It is a tape that water will not leak
even if it passes through the screw
Excellent weather resistance

White
画像
画像
画像
画像

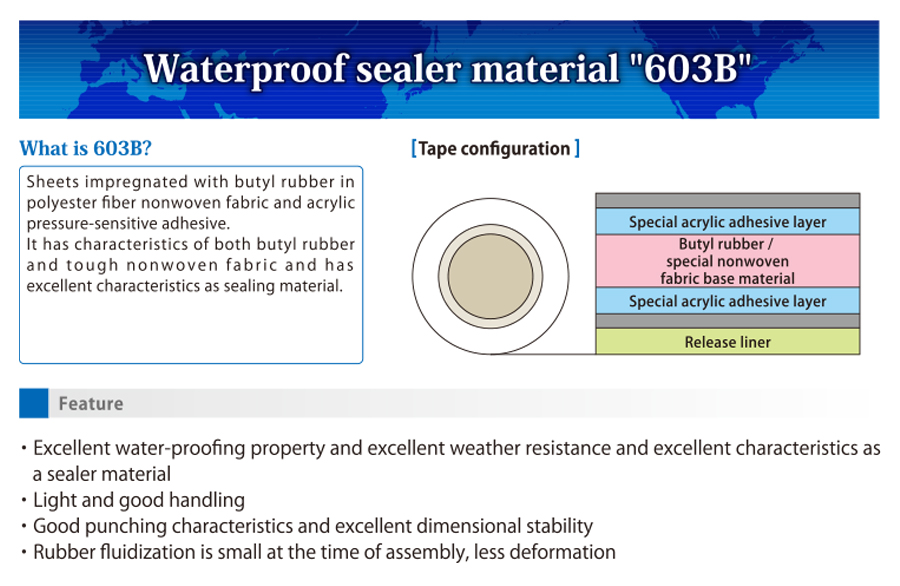

Waterproof sealer material 603B series can be downloaded.
画像

Product Name

Thickness
[mm]

Structure

Adhesive
Strength
SUS
(N/25mm)

Width × Length × Roll/Box)
(mm) × (M) × (R)

Color

Data sheet

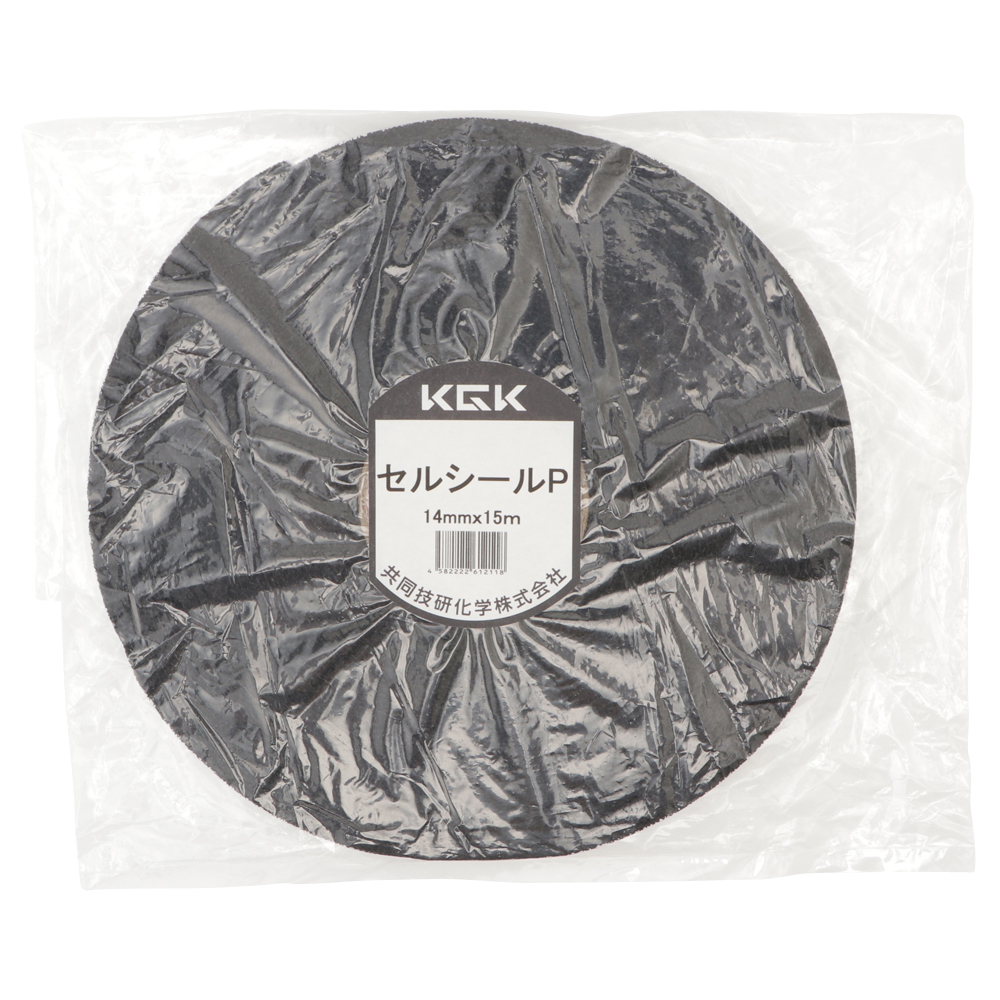

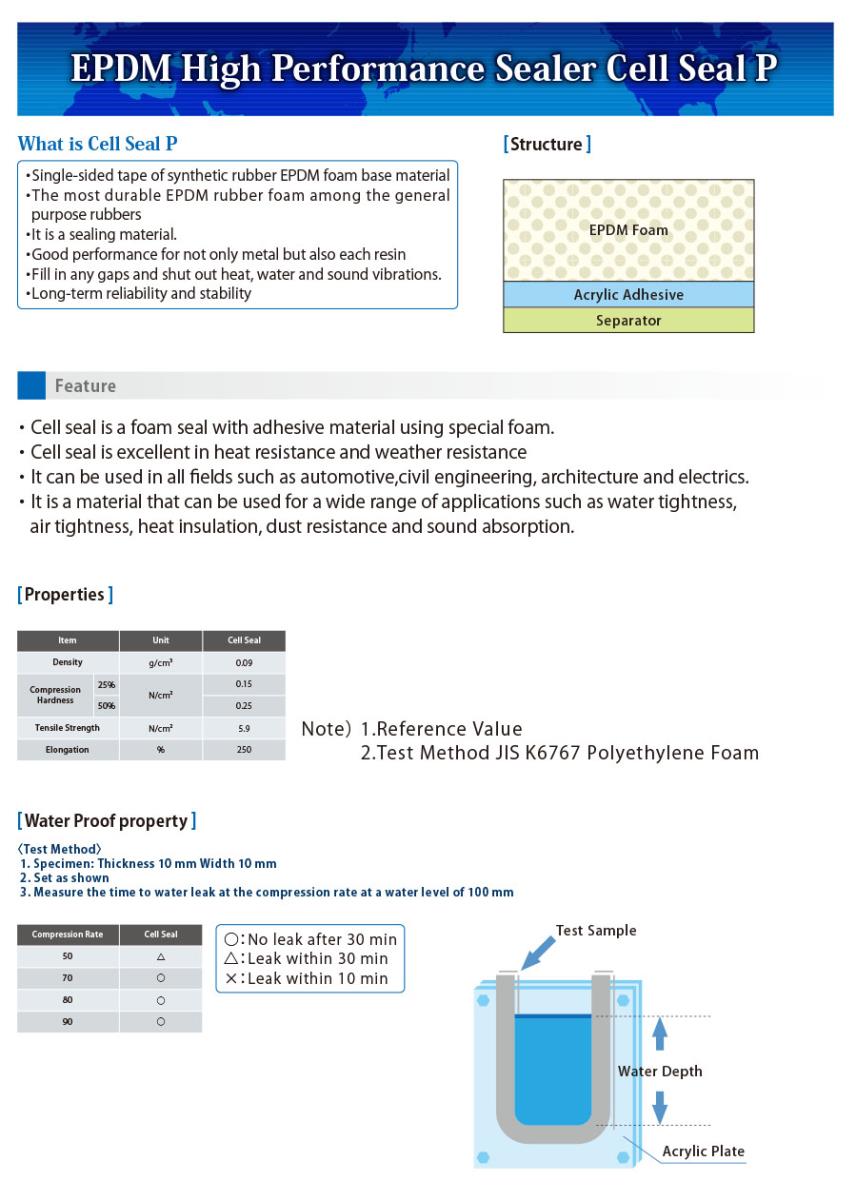

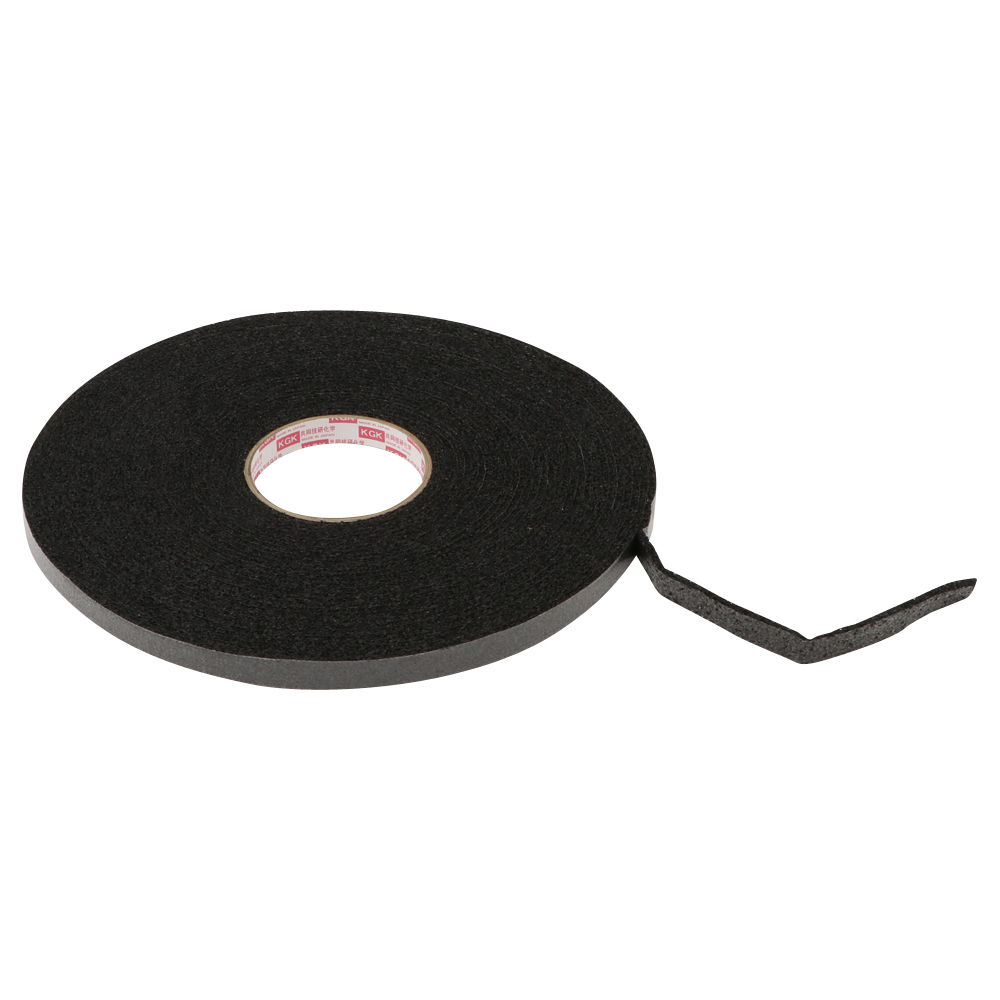

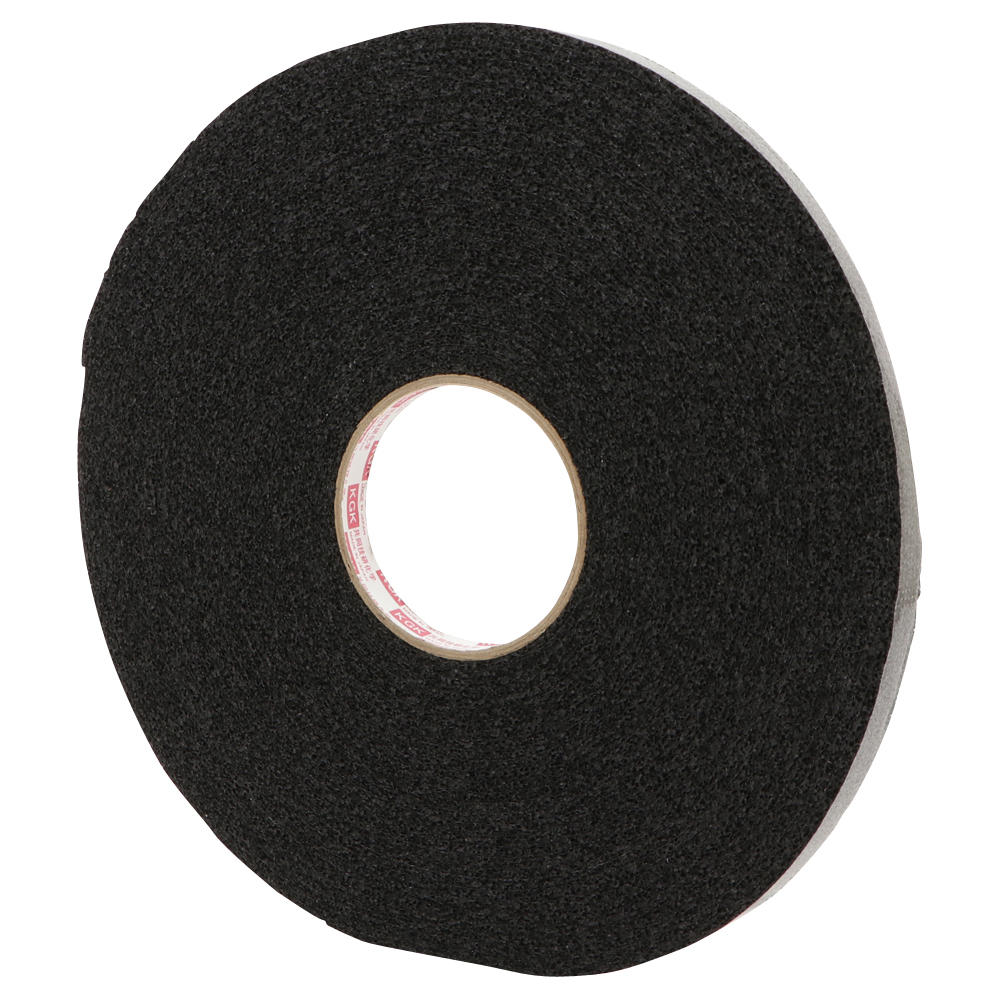

Cell Seal P
3.0
5.0
10.0
EPDM Foam
PET
10.0
20mm×15M×50R
50mm×15M×20R
50mm×3.5M×20R
Black
画像
画像
画像
画像
